Metal Honeycomb Substrate Coated Catalytic Converter
You are here: Home » Products » Honeycomb Metal Substrate » Metal Honeycomb Substrate Coated Catalytic Converter

Metal Honeycomb Substrate Coated Catalytic Converter

sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • The Brake Noise

  • Catalytic Converter

  • Europe

  • SS304, SS316, Fe-Cr-Al Alloy

  • as Catalyst Used in Automobile/Motorcycle

  • 100-600cpsi

  • 0.04-0.1

  • 10-250

  • 1100°c

  • 1250°c

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • all size

  • China

  • 84213990

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description

Catalyst Carrier Honeycomb Metal Subsrate Introduction:
Our product is made of catalyst platinum and palladium, these three precious metals to rhodium. When carbon monoxide, hydrocarbon and nitrogen gas through three-yuan catalyst, the activity will improve under high temperature. Results, carbon monoxide is oxidized carbon dioxide, hydrocarbons into water and carbon dioxide and nitrogen oxides reduction of nitrogen.

Working principle of Catalyst Carrier Metal
Catalyst Carrier Honeycomb Substrate can deal with CO, HC, and Nox three kinds of gas in the car through three-yuan catalysts, enhanced purification of three kinds of gas, oxidation, reduction of active chemical reactions. One CO under high strength. Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Firstly metallic substrate should be pretreated in order to generate a transition layer which is required to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with rare earth catalyst, while in active layer is coated with noble metal like PT, Pd, Rh. The catalytic converter is coated with rare earth element and noble metals of PT, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body; It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Metal Honeycomb Substrate:
*Can supply with Europe. II, III,IV,V Standard product
*Can supply samples for your test
*Can supply SGS test or other test as you need
*Can supply various of type as you need
*Can supply good quality and reasonbal Metal Honeycomb Substrate

Major technical parameters:
Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%

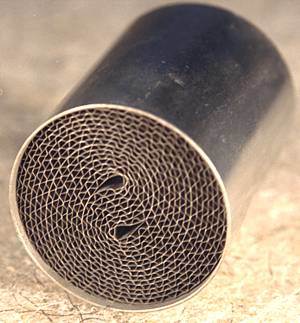

Metal Honeycomb Substrate Coated Catalytic Converter

*High quality of 409 stainless steel shell(ss304 is also avaialbe)
*400cell/sqt(300cells, 600cells, 800 cells are also available)
*Inside catalyst (PT, Pd, Rh+rare earth) coating on honey combed metal substrate
*Function: Reduce hamful emmision( CO, CH, NOx) from motor vehcle more than 97%
*Meet Euro3 emmision standard, and warranty life is 3year/80000 kms
*Precious Metal: PT/Pd/Rh--German Heraeus / Johnson Matthey
Wall Material: Cordierite/ Stainless
*Coating Material: Al2O3 and rare earth oxygen storage materials
*Usage: For exhaust system of auto engine, like Honda, Suzuki, Toyato, etc. And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.
*Durability-- Ceramic catalyst: 80, 000 KM/ Metal catalyst: 100, 000 KM
*Specification--Cylinder shape, "T" series(one hole)/ "S" series (Two holes)/ three-holes

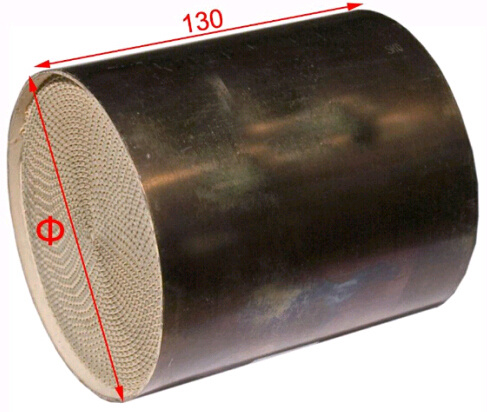

*Size: Dia 110mm~155mm, Hight: 40mm~150mm, Cell: 100~600 cpsi. Like: Dia 110*110(Inner hight 80)mm/ 200 cpsi. Dia 120*130(Inner hight120)mm/ 400 S
*Can be used for Honda, BMW, Buick, etc
*Above is part of our metal catalysts, more sizes and Spec. Can be customized to your engine.
Metal Honeycomb Substrate Coated Catalytic Converter

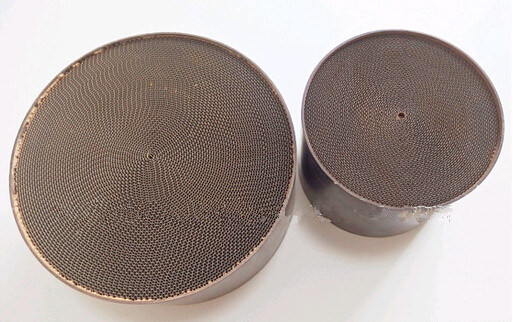

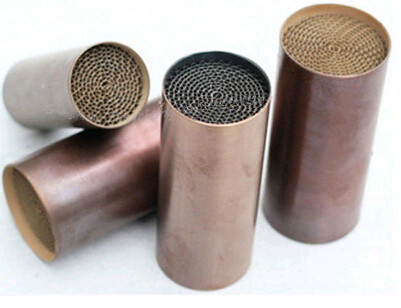

Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Ø 30x22 Ø 28X20 100/200/300/400
Rotundity Ø 35x20 Ø 33X20 100/200/300/400
Rotundity Ø 35x30 Ø 33x30 100/200/300/400
Rotundity Ø 35x40 Ø 33x40 100/200/300/400
Rotundity Ø 35x50 Ø 33x50 100/200/300/400
Rotundity Ø 35x60 Ø 33x60 100/200/300/400
Rotundity Ø 35 x 70/100/130 Ø 33 x 60/90/120 100/200/300/400
Rotundity Ø 42 x 70/100/130 Ø 40 x 60/90/120 100/200/300/400
Rotundity Ø 45 x 70/100/130 Ø 43 x 60/90/120 100/200/300/400
Rotundity Ø 63.5 x 85/100/130 Ø 60.5 x 74.5/90/120 200/300/400
Rotundity Ø 73 x 70/100/130 L Ø 70 x 60/90/120 200/300/400
Rotundity Ø 93 x 70/100/130 Ø 90 x 60/90/120 200/300/400
Rotundity Ø 100.3 x 100/130 Ø 98.3 x 90/120 600
Rotundity Ø 144 x 150/152.4 Ø 142 x 140/142.4 200/300/400
Rotundity Ø 190 x 200 Ø 188 x 190 200/300/400
Rotundity Ø 420 x 100/130 Ø 416 x 90/120 300/400

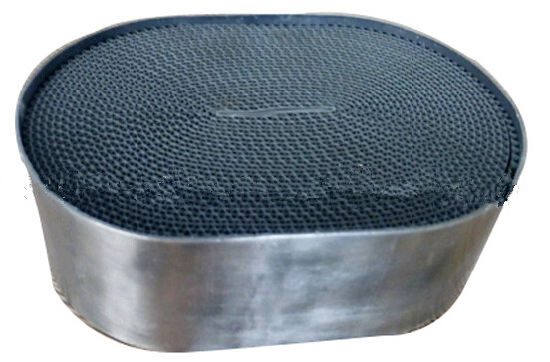

Race track 123x63x85 120x60x75 200/300
Race track 123x63x100 120x60x90 200/300
Race track 78.5x52x104 76.5x50x90 200/300


More >>
