Metal Catalyzer with Honeycomb Substrate (MHS)
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Metal Catalyzer with Honeycomb Substrate (MHS)

Metal Catalyzer with Honeycomb Substrate (MHS)

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • Transmission Noise

  • Catalytic Converter

  • Europe

  • SS304, SS316

  • as Catalyst Used in Automobile/Motorcycle

  • 0.04-0.1

  • 10-250

  • 1100ºC

  • 1250ºC

  • 63.2

  • 1.42

  • 14.7

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 84213990

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description

Metal Honeycomb Substrate Motorcycle/Car Catalyst Converter
Passing through the strict test of endurance, our motorcycle catalyst converter has met European emission standard, and the economical sloss (loss)of motorcycle's power could be less than 3%. Its catalyst carrier includes: Metallic catalyst carrier and honeycomb ceramic catalyst carrier. We could customize the products according to clients's different requirement (clients different requirements).
Test result(Given by Quality Supervision and Inspection Station of Industrial Ceramic)
* To make the product with tri-angle, round and square hole as well as other specification in accordance with customer's demand.
* Adopt the metallic and ceramic carrier as motorcycle catalyst.
* Simulation system of the computer to design meticulously, it is accurate to match. (Simulation system of the computer is designed meticulously and matched accurately)
* Remarkable to purify, are equivalent Europe II Emission standard (Remarkable purify effect which are equivalent to Europe II Emission standard)
* Motor damnify< 3%
* Passed Wearing test of 15000KM
Standard of precious metal coating
*EURO3 standard
*EURO4 standard
*We can provide the product with customers' formula.



Advantages:
*Fantastic coating fastness and stable and long-termed catalyst ability.
*Advanced technic of substrates making and canning, ensuring dependable resistance heat shocks and stability of equipment.
Major technical parameters:
*Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
*Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
*Coating losing rate: ≤ 3%
*Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%

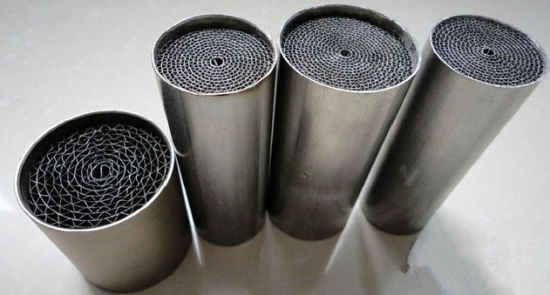

Metal Catalyzer with Honeycomb Substrate (MHS)



Features of this catalytic converter:
*High quality of 409 stainless steel shell(ss304 is also avaialbe), .
*400cell/sqt(300cells, 600cells, 800 cells are also available)
*Inside catalyst (PT, Pd, Rh+rare earth) coating on honey combed metal substrate
*Function: Reduce hamful emmision( CO, CH, NOx) from motor vehcle more than 97%;
*Meet Euro3 emmision standard, and warranty life is 3year/80000 kms

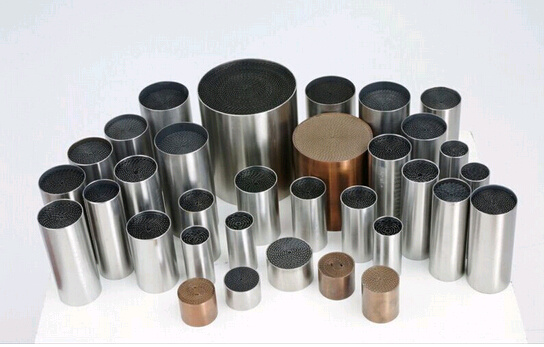

Metal Catalyzer with Honeycomb Substrate (MHS)
Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Φ 30×22 Φ 28×20 100/200/300/400
Rotundity Φ 35×20 Φ 33×20 100/200/300/400
Rotundity Φ 35×30 Φ 33×30 100/200/300/400
Rotundity Φ 35×40 Φ 33×40 100/200/300/400
Rotundity Φ 35×50 Φ 33×50 100/200/300/400
Rotundity Φ 35×60 Φ 33×60 100/200/300/400
Rotundity Φ35 × 70/100/130 Φ33 × 60/90/120 100/200/300/400
Rotundity Φ42 × 70/100/130 Φ40 × 60/90/120 100/200/300/400
Rotundity Φ45 × 70/100/130 Φ43 × 60/90/120 100/200/300/400
Rotundity Φ63,5 × 85/100/130 Φ60,5 × 74,5/90/120 200/300/400
Rotundity Φ73 × 70/100/130 L Φ70 × 60/90/120 200/300/400
Rotundity Φ93 × 70/100/130 Φ90 × 60/90/120 200/300/400
Rotundity Φ100,3 × 100/130 Φ98,3 × 90/120 600
Rotundity Φ144 × 150/152,4 Φ142 × 140/142,4 200/300/400
Rotundity Φ190 × 200 Φ188 × 190 200/300/400
Rotundity Φ420 × 100/130 Φ416 × 90/120 300/400
Race track 123×63×85 120×60×75 200/300
Race track 123×63×100 120×60×90 200/300
Race track 78,5×52×104 76,5×50×90 200/300
