Metal Catalytic Converter Substrate for Euroii-Eurov
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Metal Catalytic Converter Substrate for Euroii-Eurov


Metal Catalytic Converter Substrate for Euroii-Eurov

sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet/Packed as Customers′ Need

  • L/C, T/T, Western Union

  • MHS

  • as Catalyst Used in Automobile/Motorcycle

  • DXY

  • China

  • Steel

  • Euro V

  • ISO9001, TS16949

  • Catalytic Converter

  • Ss304, Ss316

  • Diameter<120mm/Diameter<200mm, etc

Product Description

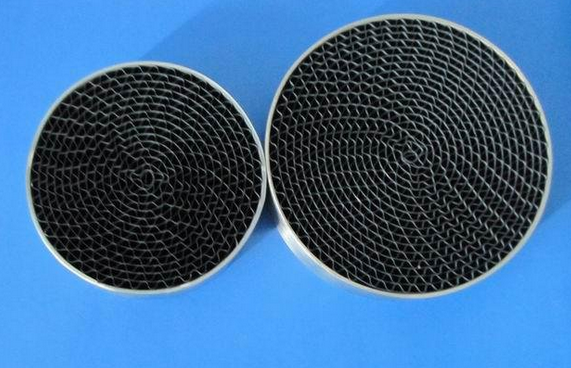

Metal Honeycomb Subsrate Introduction:
Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. High strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of motorcycle exhaust efficiently, such as CO, HC, NOX etc...And such kind of catalyst is of excellent catalytic activity and durability that could reach Euro emission standard IV or V.

The material of outside shell is SUS441 and 444. The foil material of inside is OCr21Al6, and the thickness is 0.1mm. Compared to ceramic substrate, the metallic substrate has good heat conduction advantage. The honeycomb metal substrate for precious metal coating, our technology can make sure the low loss rate. It can be made of concentric round metal substrate, also can be made of duboule's metal substrate.

Catalyst Carrier Honeycomb Ceramic Substrate:
*Can supply with Europe. II, III Standard product
*Can supply samples for your test
*Can supply SGS test or other test as u need
*Can supply various of type as u need
*Can supply good quality and reasonbal Ceramic Substrate

Metal Honeycomb Substraate Working Prinpicle:
Catalyst Carrier Honeycomb Metal Substrate can deal with CO, HC, and Nox three kinds of gas in the car through three-way catalysts, enhanced purification of three kinds of gas, oxidation, reduction of active chemical reactions.

*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application

Metal-based monolith substrate offers many advantages in comparison with a ceramic substrate, such as:
*Shorter light off time
*Less risk of overheating
*Less back pressure
*Larger effective area
*Greater catalytic capacity
*Smaller and more flexible design
*Thinner walls
*Higher mechanical strength
*Better resistance to thermal shock

Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Ø 30x22 Ø 28X20 100/200/300/400
Rotundity Ø 35x20 Ø 33X20 100/200/300/400
Rotundity Ø 35x30 Ø 33x30 100/200/300/400
Rotundity Ø 35x40 Ø 33x40 100/200/300/400
Rotundity Ø 35x50 Ø 33x50 100/200/300/400
Rotundity Ø 35x60 Ø 33x60 100/200/300/400
Rotundity Ø 35 x 70/100/130 Ø 33 x 60/90/120 100/200/300/400
Rotundity Ø 42 x 70/100/130 Ø 40 x 60/90/120 100/200/300/400
Rotundity Ø 45 x 70/100/130 Ø 43 x 60/90/120 100/200/300/400
Rotundity Ø 63.5 x 85/100/130 Ø 60.5 x 74.5/90/120 200/300/400
Rotundity Ø 73 x 70/100/130 L Ø 70 x 60/90/120 200/300/400
Rotundity Ø 93 x 70/100/130 Ø 90 x 60/90/120 200/300/400
Rotundity Ø 100.3 x 100/130 Ø 98.3 x 90/120 600
Rotundity Ø 144 x 150/152.4 Ø 142 x 140/142.4 200/300/400
Rotundity Ø 190 x 200 Ø 188 x 190 200/300/400
Rotundity Ø 420 x 100/130 Ø 416 x 90/120 300/400
Race track 123x63x85 120x60x75 200/300
Race track 123x63x100 120x60x90 200/300
Race track 78.5x52x104 76.5x50x90 200/300

Mantle Matrix Brazing
Ferritel (SUS444, SUS441, SUS430) Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767)
Nickel base alloy
or Austenitic heat resistant stainless steel (SUS304)
