Honeycomb Metallic Substrate Metal Honeycomb Catalyst for Motorcycle
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Honeycomb Metallic Substrate Metal Honeycomb Catalyst for Motorcycle

Honeycomb Metallic Substrate Metal Honeycomb Catalyst for Motorcycle

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • The Brake Noise

  • Catalytic Converter

  • North America

  • SS304, SS316,Fe-Cr-Al Alloy

  • Gas Treatment/Purifier for Auto/Motorcycle

  • 100-600cpsi

  • 0.04-0.1

  • 10-250

  • 1100°c

  • 1250°c

  • DXY

  • Wooden Box/Carton Box with Pallet

  • all size

  • China

  • 84213930

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description

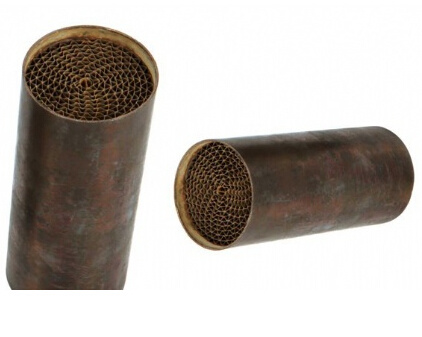

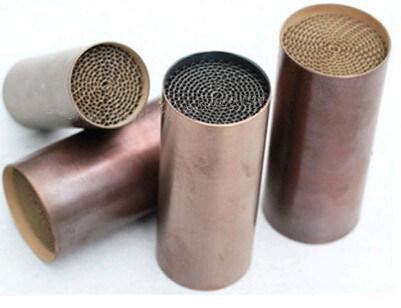

Metal Honeycomb Substrate covers these features: Ignition fast, small size, high strength, heat resistance, etc., are the most widely used in motorcycle exhaust gas purification. It is the surface
Pretreated so that metal honeycomb substrate is generated between the metal buffer layer and
The active coating layer, the thermal expansion match to address gradient between the metallic
Active coating material and the transition in the buffer layer coating containing Ce, La, Pr and
Other rare earth elements in the active coating layer, and then a load comprising Pt, Rh, etc.
Made of a noble metal of the active ingredient.

Metal honeycomb substrate advantages:
1) Vector buffer layer surface treatment, the coating is firmly combined;
2) Using high temperature resistant material than the high surface area and good catalytic
Converter temperature performance;
3) Optimizing the ratio of precious metals and rare earth elements, catalytic converter light-off temperature is low;
4) High-performance oxygen storage material formulations, high purification efficiency of catalytic
Converters;
5) Used for metal substrate automatic coating apparatus, the coating uniformity;
6) Metal catalytic converters long life: Gasoline vehicles up to 120, 000km;
7) Strict quality control and inspection, product quality and stability;
8) Different cost formulas to choose from, both emissions compliance colleagues economy.

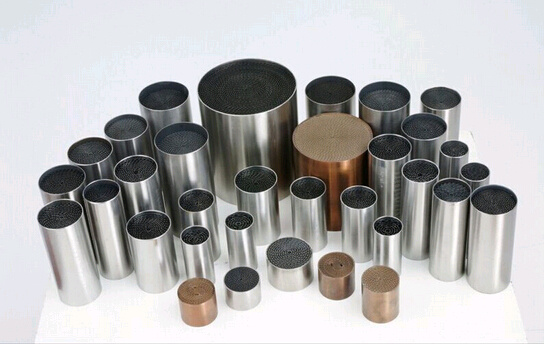

Honeycomb Metallic Substrate Metal Honeycomb Catalyst for Motorcycle

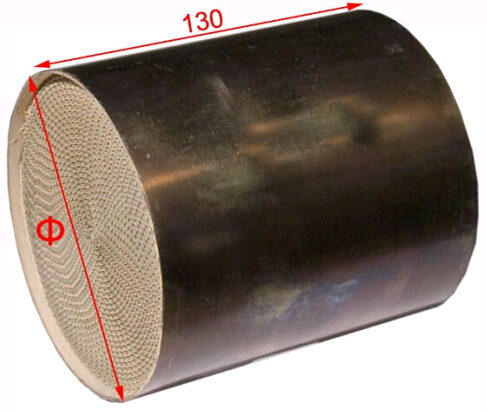

Specification (mm) Radius (mm) Height (mm) CPSI
28X60 26 50 100
28X100 26 90 100
35X30 33 20 100
35X40 33 30 100
35X50 33 40 100
35X60 33 50 100, 400
35X70 33 60 100, 200
35X100 33 90 100, 200, 400
42X100 40 90 100, 200, 400
43X75 41 65 100, 200, 300
43X100 41 90 100, 200, 300
45X60 43 50 100
53X60 51 50 100
63.5X50 60.5 40 100, 200, 400
63.5X70 60.5 60 200, 300, 400
