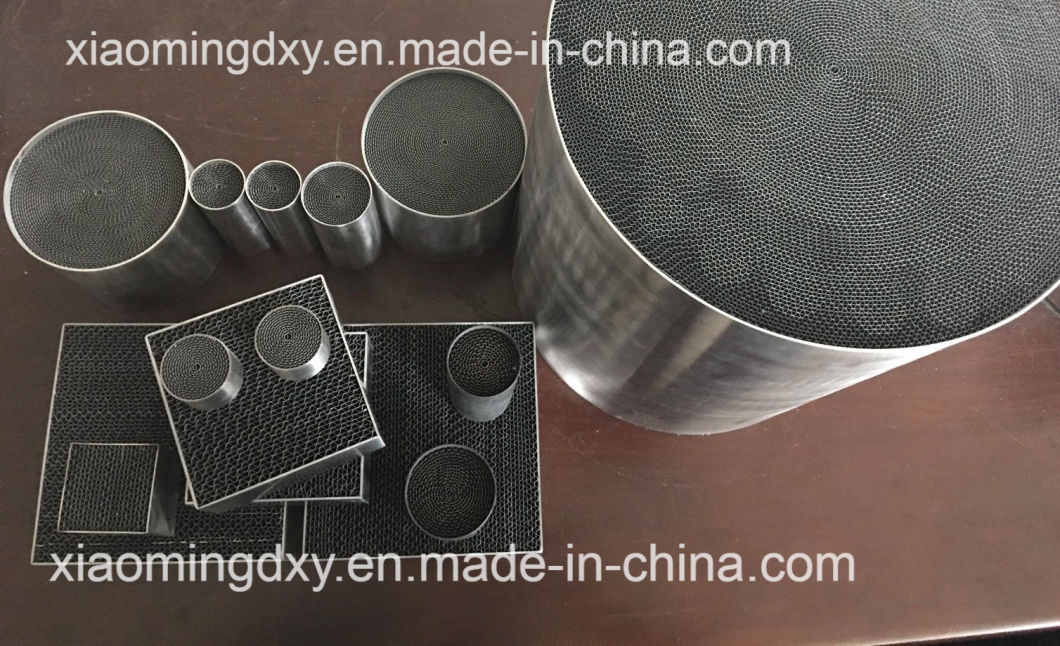

Honeycomb Metal Substrate for Car Exhaust Purification Metallic Catalytic Converter Substrate
You are here: Home » Products » Honeycomb Metal Substrate » Honeycomb Metal Substrate for Car Exhaust Purification Metallic Catalytic Converter Substrate

Honeycomb Metal Substrate for Car Exhaust Purification Metallic Catalytic Converter Substrate

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • MHS
  • Transmission Noise
  • Catalytic Converter
  • Europe
  • SS304, SS316,Fe-Cr-Al Alloy
  • 100-600cpsi
  • 0.04-0.1
  • 10-250
  • 1100°c
  • 1250°c
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • all size
  • China
  • 84213990
  • Catalytic Converter
  • Alloy
  • Euro V
  • ISO9001, TS16949
  • The Noise of Engine
  • Mechanical Noise

Product Description

Metallic substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification equipment, especially sports car, motorbike, yacht etc. Metallic substrate should be pretreated to generate a transition layer which is to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with the rare earth catalyst layer, while in active layer is coated with noble metal like Pt, Pd, Rh.

Advantage
*Fantastic coating fastness and stable and long-termed catalyst ability.
*Advanced technic of substrates making and canning, ensuring dependable resistance heat shocks and stability of equipment.

Specifications
*Energy efficiency and environmental protection
*Active ingredient, and long life
*Good endurance

Features:
*Stainless steel shell
*Foil material is OCr21Al6, foil thickness is 0.1mm
*Cell pieces per square inch: 100, 200, 300 and 400cpsi
*Shape and dimension is customized according to drawing provided

Standard of precious metal coating
1. EURO1 standard
2. EURO2 standard
3. EURO3 standard
4. EURO4 standard
5. We can provide the product with customers' formula.
Honeycomb Metal Substrate for Car Exhaust Purification Metallic Catalytic Converter Substrate

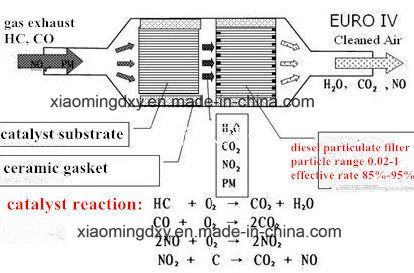

Applications: Transforms CO, HC and NOx to CO2, H2O and N2.
Chooses metal catalyst with suitable size, volume, precious metal content and ratio according to motorcycles' practical situation to satisfy certain emission rule.
We always choose metal honeycomb carrier with stainless steel crust and Fe-Cr-Al core made.
Shape: Columned
Dia.: 28~63.5mm
Height: 30~100mm
Light-off temperature Durability Conversion efficiency Coating desquamate rate
T50(CO) ≤ 230 T50(HC) ≤ 260 T50(NOX) ≤ 250 1000KM CO ≥ 85% HC ≥ 80% CO ≥ 85% ≤ 7%
Honeycomb Metal Substrate for Car Exhaust Purification Metallic Catalytic Converter Substrate
Shape Material Diameter Length Channel density(cpsi) Precious metal
Cylinder Fe/Cr/Al 20 20 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 20 80 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 30 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 30 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 40 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 70 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 38 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 42 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 48.6 70 100/200/300 Pd/Pt/Rh
Cylinder Fe/Cr/Al 63 50 100/200/300/400 Pd/Pt/Rh
Cylinder Fe/Cr/Al 101.6 100 200/300 Pd/Pt/Rh
Racetrack Fe/Cr/Al 123 63 200/300 Pd/Pt/Rh
Racetrack Fe/Cr/Al 78.5 52 200/300 Pd/Pt/Rh
