Honeycomb Metal Substrate Metallic Substrate Catalyst
You are here: Home » Products » Honeycomb Metal Substrate » Honeycomb Metal Substrate Metallic Substrate Catalyst

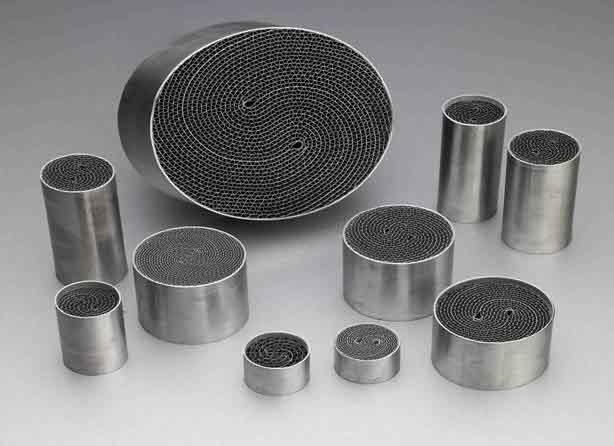

Honeycomb Metal Substrate Metallic Substrate Catalyst

Quantity:
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 8421399000

  • Steel

  • Euro V

  • ISO9001, TS16949

  • Catalytic Converter

  • SS304

  • 100-600cpsi

Product Description

Honeycomb Metal Substrate Metallic Substrate Catalyst
Metal Honeycomb Substrate Introduction:
Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Firstly metallic substrate should be pretreated in order to generate a transition layer which is required to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with rare earth catalyst, while in active layer is coated with noble metal like Pt, Pd, Rh.
The catalytic converter is coated with rare earth element and noble metals of Pt, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body; It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Remark: We can supply Metallic Substrate coated with noble metals of Pt, Pd and
Rh, and we also offer Metallic Substrate without precious metals.

Features:
*Good thermal shock resistance
*Corrosion resistant
*High durability performance
*Designed to fit customers' specific needs

Major technical parameters:
*Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy);
*Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C;
*Coating losing rate ≤ 3%;
*Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Substrate
Mantle 430/436/441/444
Honeycomb Fe-Cr-Al
Brazing Material BNi5
Shape Material Diameter Length Channel density(cpsi)
Cylinder Fe/Cr/Al 20 20 100/200
Cylinder Fe/Cr/Al 20 80 100/200
Cylinder Fe/Cr/Al 30 100 100/200
Cylinder Fe/Cr/Al 28 60 100/200
Cylinder Fe/Cr/Al 28 100 100/200
Cylinder Fe/Cr/Al 35 30 100/200
Cylinder Fe/Cr/Al 35 40 100/200
Cylinder Fe/Cr/Al 35 60 100/200
Cylinder Fe/Cr/Al 35 70 100/200
Cylinder Fe/Cr/Al 35 100 100/200
Cylinder Fe/Cr/Al 38 100 100/200/300/400
Cylinder Fe/Cr/Al 42 100 100/200/300/400
Cylinder Fe/Cr/Al 45 100 100/200/300/400
Cylinder Fe/Cr/Al 48.6 70 100/200/300/400
Cylinder Fe/Cr/Al 53 100 100/200/300/400
Cylinder Fe/Cr/Al 63 50 100/200/300/400
Cylinder Fe/Cr/Al 101.6 100 200/300/400
