Honeycomb Ceramic Monolith Substrate Ceramic Catalyst
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Honeycomb Ceramic Monolith Substrate Ceramic Catalyst

Honeycomb Ceramic Monolith Substrate Ceramic Catalyst

Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet/Packed as Customers′ Need

  • L/C, T/T, Western Union

  • CHS

  • Catalytic Converter

  • Cordierite

  • Diameter<120mm/Diameter<200mm,etc

  • 100-600cpsi

  • as Catalyst Used in Automobile/Motorcycle

  • DXY

  • China

  • Ceramic

  • Euro IV

  • ISO9001

  • The Noise of Engine

  • Mechanical Noise

  • The Brake Noise

Product Description

Honeycomb Ceramic Substrate is made of cordierite, and it is used for car catalytic converter. Honeycomb Ceramic Substrate have a very competive substrates. We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral. It can be coated with the catalyst and the noble metal of Pt, Pd, Rh as the customers emission standards: Euro II, EuroIII and EuroIV and so on.

They well match active components of catalysts, have thin pore wall, large geometric specific area, low thermal expansion coefficient and good thermal impact resistance, while widely used in various fields. The products are the ideal carrier for catalysts and heat exchanger of purifying waste gas in environmental protection and chemical industry, and also the ideal high-temperature filtering materials of the metallurgy and casting industry.

Honeycomb ceramic has the unique construction, excellent surface function and thermal property, was widely used in the automobile tail gas purification, chemical effluent gas purification, chemical catalysis, connecting combustion, melt metals and thermal medium filtering etc.

Application: Automobile exhaust purification catalyst carrier, suitable for Automotive vehicle exhaust purifiers (European standard) supporting

Specifications:
*Pore density: 600 cells/square inch, 25 cells/square inch
*Materials include cordierite, mullite cordierite, mullite and high alumina
*Pore shapes: Circular, rectangular and triangle
*Product section: Circular, square, rectangular, oval, lane-shape and special-shape
*Max. Outside dimensions: Diameter 300mm, height 355mm
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small
*Cold start performance is good, low light-off temperature, high conversion efficiency

Parameters Unit standard typical data
Cordierite crystal phase wt% ≥ 90 94
Coefficient of Thermal Expansion20-800 ° C cm/cm/ ° C ≤ 1.2 ≤ 1.5 × 10-6
Thermal Stability20-650 ° C times ≥ 1 3
Soften Temperature ° C ≥ 1420 1440
Compression Strength Lengthways MPa ≥ 15 16.9
Horizontal MPa ≥ 2 6.2
Specific Weight Kg/L ≥ 0.15 0.45-0.5
Porosity % 40-45 41
Water-absorbing rate % 23-27 23.8

Rotundity shape Ellipse shape
Specificationmm Number of channels (holes /square inch) Specification (mm) Number of channels (holes /square inch)
Φ 83 × 85 400 T146.8 × 77 × 86.4 400
Φ 144 × 152.4 400 T120.6 × 80 × 152.4 400
Φ 100 × 100 400 T169.7 × 80.7 × 76.2 400
Φ 130 × 130 400 T144.8 × 81.3 × 152.4 400
Φ 118 × 150 400 T144.8 × 81 × 76.2 400
Φ 103 × 100 400 T169.7 × 80.7 × 101.6 400
Φ 150 × 75 400 T144.8 × 81.3 × 100 300
Φ 83 × 125 400 T127 × 63.5 × 107 300
Φ 150 × 150 300 T144.8 × 81.3 × 70 300
Φ 120 × 100 300 T144.8 × 81.3 × 150 300
Φ 101.6 × 100 300 Race track shape
Φ 94 × 100 300 P120.65 × 80.01 × 76.2 400
Φ 85 × 70 300 P120.65 × 80.01 × 76.2 200
Φ 93 × 76 200 P144 × 68 × 150 400
Φ 118 × 76 200 P125 × 80 × 100 400

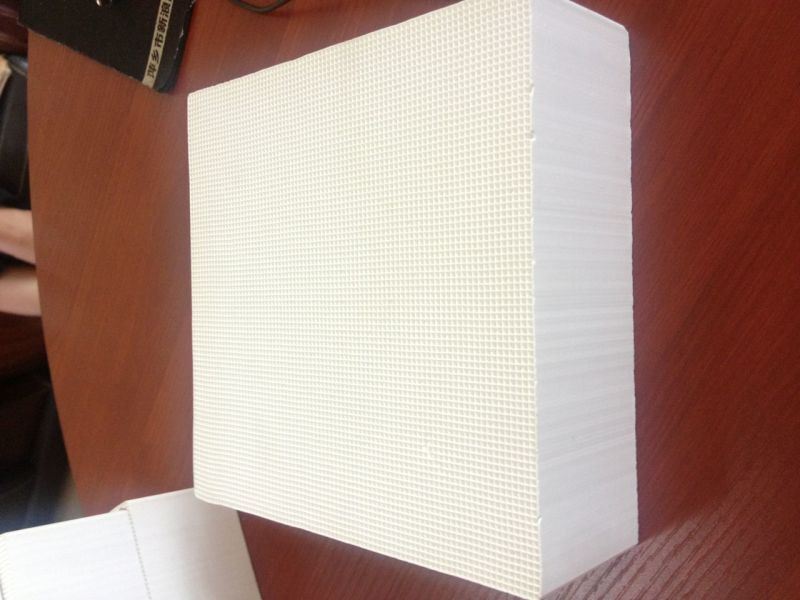

Honeycomb Ceramic Monolith Substrate Ceramic Catalyst
Package
Honeycomb Ceramic Monolith Substrate Ceramic Catalyst
Honeycomb Ceramic Monolith Substrate Ceramic Catalyst
