Honeycomb Ceramic Chemial Ceramic Catalyst Substrate for Car Exhaust Pipe
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Honeycomb Ceramic Chemial Ceramic Catalyst Substrate for Car Exhaust Pipe

Honeycomb Ceramic Chemial Ceramic Catalyst Substrate for Car Exhaust Pipe

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • CHS
  • 100-600cpsi
  • as Catalyst Used in Automobile/Motorcycle
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • China
  • 6909190000
  • Ceramic
  • Euro IV
  • ISO9001
  • Catalytic Converter
  • Cordierite
  • Diameter<120mm/Diameter<200mm,etc

Product Description

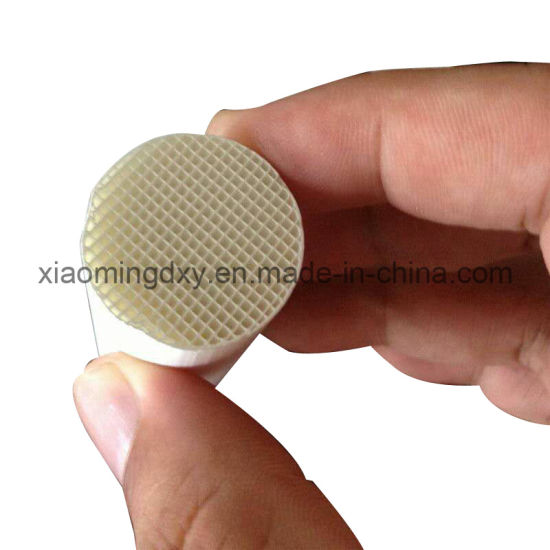

Ceramic honeycomb substrate is used as catalytic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated with noble metals to be catalyst. Meanwhile, we improve the specific surface areas and cut down the heat capacity to increase the catalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.

Honeycomb Ceramic Chemial Ceramic Catalyst Substrate for Car Exhaust Pipe

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

Features:
*High specific surface area: Ensure exhaust gas could contact weigh catalyst enough
*Stable water absorption: Guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste for too thick coating
*Warm-up characters: After starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time
*Low exhaust resistance: Ask exhaust resistance of substrate to engine low, so that it won't affect the performance of engine
*High intensity: Substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed
*Perfect assembly: Substrates are parts of exhaust; Perfect appearance and exact dimension could ensure assembly perfect
SiO2 Al2O3 MgO Fe2O3 Na2O K2O
48-51% 31-34% 14-16% <0.5% <0.5% <0.5%
Index Value
Cordierite gross density(g/cm3) 1.9-2.0
Average linear expansion(20-1000celsius degree) (10-6/k-1) <2
Specific heat capacity(KJ/Kg) 830-900
Temperature cycle resistance(K) 300
Max operation Temp.(celsius degree) 1300
Thermal shock resistance(celsius degree) 800
Acid resistance(%) >99
Alkali resistance(%) >85
Spec. Quantity of channels Wall thickness (mm) Surface area (m2/m3) Free volume (%) Average weight (min.) (kg/m3)
150*150*300 60*60 0.5 1315 70 680
150*150*300 50*50 0.7 1050 58 680
150*150*300 40*40 0.7 883 65 518
150*150*300 25*25 1.0 573 67 502
