Honeycomb Ceramic Catalytic Converter Substrate for Exhaust Purification
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Honeycomb Ceramic Catalytic Converter Substrate for Exhaust Purification

Honeycomb Ceramic Catalytic Converter Substrate for Exhaust Purification

sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • CHS

  • Catalytic Converter

  • Cordierite

  • Diameter<120mm/Diameter<200mm,etc

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001

  • Mechanical Noise and Combustion

  • Mechanical Noise

  • The Brake Noise

Product Description

Honeycomb Ceramic Catalyst substrate used in cars:
Used as catalystic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst; At the same time, we improve the specific surface areas and cut down the heat capacity to increase the atalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.

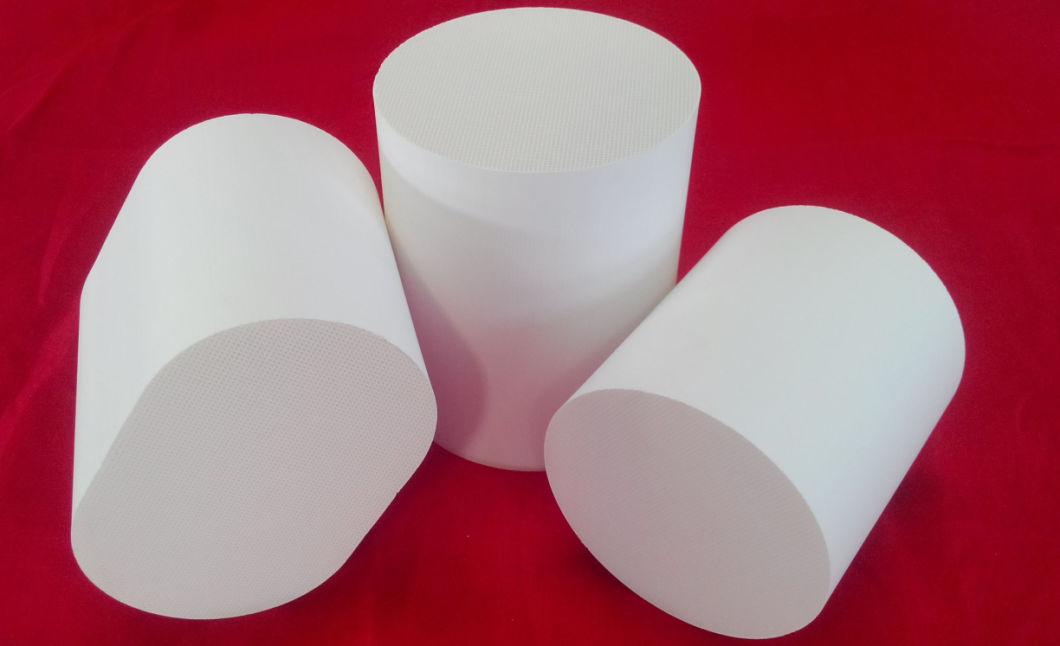

Honeycomb Ceramic Catalytic Converter Substrate for Exhaust Purification

Our ceramic honeycomb substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification for motorbike/vehicle. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI with various shapes, such as round, oval, racetrack and other customized shapes. We can coat them with noble metals like Pt, Pd, Rh to remove harmful gases such as CO, NOx etc that can meet emission standard: EuroII-EuroV.

>High specific surface area: Ensure exhaust gas could contact with catalyst enough.
>Stable water absorption: Guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating.
>Warm-up characters: After starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
>Low exhaust resistance: Ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine.
>High intensity: Substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
>Perfect assembly: Substrates are parts of exhaust; Perfect appearance and exact dimension could ensure assembly perfect.
Item Index

Heat Property
Coefficient of heat expansion (40-800celsius degree) (x10-6/celsius degree) <1.0
Heat Property Specific heat [J/(g.k)] 0.84
Heat Property Softening temperature (celsius degree) 1400
Heat Property Melting point (celsius degree) 1455
Heat Property The highest working temperature (celsius degree) 1350
Physical Property Fine mesh bulk (cm3/g) 0.2
Physical Property Apparent porosity (%) 36
Physical Property Average fine aperture (um) 4
Mechanical Property Compress breaking strength (Mpa) Aaxes>8.3 Baxes>1.1 Caxes>0.1
Thermal Shock Resistance Aire cooled temperature difference (celsius degree) >650
