High Flow Exhaust System Honeycomb Metal Catalyst
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » High Flow Exhaust System Honeycomb Metal Catalyst

High Flow Exhaust System Honeycomb Metal Catalyst

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • MHS
  • The Brake Noise
  • Catalytic Converter
  • North America
  • SS304, SS316
  • Used in Automobile/Motorcycle
  • 100-400cpsi
  • 0.04-0.1
  • 10-250
  • 1100°c
  • 1250°c
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • all size
  • China
  • 84213990
  • Catalytic Converter
  • Steel
  • Euro V
  • ISO9001, TS16949
  • The Noise of Engine
  • Mechanical Noise

Product Description

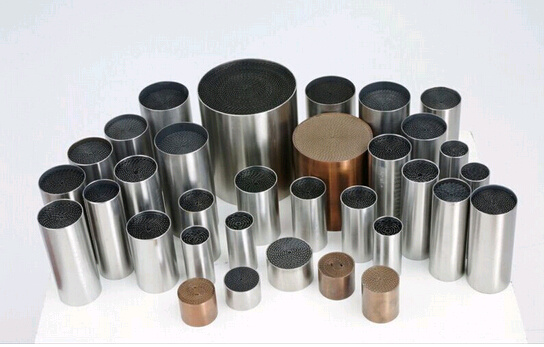

Metal-based monolith honeycomb substrate offers many advantages in comparison with a ceramic one, such as shorter light off time, less risk of overheating, less back pressure, larger effective area, greater catalytic capacity, smaller and more flexible design, etc. Catalyst is a device used to reduce the toxicity of emissions from an internal combustion engine, reduction of nitrogen oxides to nitrogen and oxygen, oxidation of carbon monoxide to carbon dioxide and oxidation of un-burnt hydrocarbons (HC) to carbon dioxide and water.

The catalytic converter is coated with rare earth element and noble metals of Pt, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body; It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Advantages: Bore wall is thin, the high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst

Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
Light-off temperature Durability Conversion efficiency Coating desquamate rate
T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250 1000KM CO≥85% HC≥80% CO≥85% ≤7%

High Flow Exhaust System Honeycomb Metal Catalyst
Shape Material Diameter Length Channel density(cpsi) Precious metal
Cylinder Fe/Cr/Al 20 20 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 20 80 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 30 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 30 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 40 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 70 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 38 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 42 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 48.6 70 100/200/300 Pd/Pt/Rh
Cylinder Fe/Cr/Al 63 50 100/200/300/400 Pd/Pt/Rh
Cylinder Fe/Cr/Al 101.6 100 400 Pd/Pt/Rh
