Euroiv Metal Honeycomb Substrate Catalytic Converter Substrate
You are here: Home » Products » Honeycomb Metal Substrate » Euroiv Metal Honeycomb Substrate Catalytic Converter Substrate

Euroiv Metal Honeycomb Substrate Catalytic Converter Substrate

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • MHS
  • The Brake Noise
  • Catalytic Converter
  • Europe
  • SS304, SS316
  • 100-600cpsi
  • Round/Square/Rectangular
  • 0.04-0.1
  • 10-250
  • 1100°c
  • 1250°c
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • all size
  • China
  • 84213990
  • Catalytic Converter
  • Steel
  • Euro V
  • ISO9001, TS16949
  • The Noise of Engine
  • Mechanical Noise

Product Description

Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike, vehicle and so on. High strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of motorcycle exhaust efficiently, such as CO, HC, NOX etc. And such kind of catalyst is of excellent catalytic activity and durability that could reach Euro emission standard 3, meet requirement and have approval of EPA and E-Mark.

*Catalyst type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst
*Catalytic substrate: Metal substrate and honeycomb ceramic substrate
*Fantastic coating fastness and stably and long-term catalyst ability
*Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment
*Various kinds of specifications and types, customized products as per clients specific requirement and technology data

Major technical parameters:
Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%

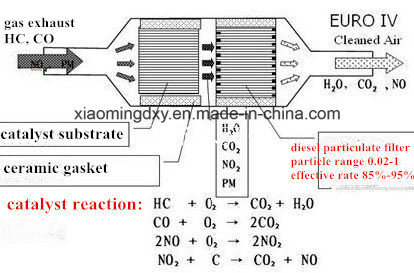

Working principle:
*Catalytic converter is a device used to reduce the toxicity of emissions from an internal combustion engine
*Reduction of nitrogen oxides to nitrogen and oxygen:
2NOx xO2 + N2
*Oxidation of carbon monoxide to carbon dioxide:
2CO + O2 2CO2
*Oxidation of un-burnt hydrocarbons (HC) to carbon dioxide and water:
CxH2x+2 + [(3x+1)/2]O2 xCO2 + (x+1)H2O
Euroiv Metal Honeycomb Substrate Catalytic Converter Substrate


Advantages:
*Fantastic coating fastness and stable and long-termed catalyst ability
*Advanced technic of substrates making and canning, ensuring dependable resistance heat shocks and stability of equipment

Remark: We can supply Metallic Substrate coated with noble metals of Pt, Pd and
Rh. We also supply Metallic Substrate without noble metals
Mantle Matrix Brazing
Ferritel (SUS444, SUS441, SUS430) or Austenitic heat resistant stainless steel (SUS304) Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767)
Nickel base alloy





Euroiv Metal Honeycomb Substrate Catalytic Converter Substrate


Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Ø 30x22 Ø 28X20 100/200/300/400
Rotundity Ø 35x20 Ø 33X20 100/200/300/400
Rotundity Ø 35x30 Ø 33x30 100/200/300/400
Rotundity Ø 35x40 Ø 33x40 100/200/300/400
Rotundity Ø 35x50 Ø 33x50 100/200/300/400
Rotundity Ø 35x60 Ø 33x60 100/200/300/400
Rotundity Ø 35 x 70/100/130 Ø 33 x 60/90/120 100/200/300/400
Rotundity Ø 42 x 70/100/130 Ø 40 x 60/90/120 100/200/300/400
Rotundity Ø 45 x 70/100/130 Ø 43 x 60/90/120 100/200/300/400
Rotundity Ø 63.5 x 85/100/130 Ø 60.5 x 74.5/90/120 200/300/400
Rotundity Ø 73 x 70/100/130 L Ø 70 x 60/90/120 200/300/400
Rotundity Ø 93 x 70/100/130 Ø 90 x 60/90/120 200/300/400
Rotundity Ø 100.3 x 100/130 Ø 98.3 x 90/120 600
Rotundity Ø 144 x 150/152.4 Ø 142 x 140/142.4 200/300/400
Rotundity Ø 190 x 200 Ø 188 x 190 200/300/400
Rotundity Ø 420 x 100/130 Ø 416 x 90/120 300/400
Race track 123x63x85 120x60x75 200/300
Race track 123x63x100 120x60x90 200/300
Race track 78.5x52x104 76.5x50x90 200/300
