Euro4 Metal Car Exhaust System Catalyst Substrate
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Euro4 Metal Car Exhaust System Catalyst Substrate

loading

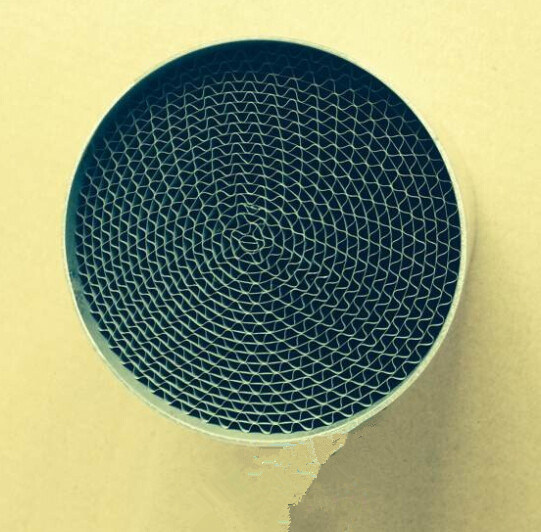

Euro4 Metal Car Exhaust System Catalyst Substrate

Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet/Packed as Customers′ Need

  • L/C, T/T, Western Union

  • MHS

  • Catalytic Converter

  • Ss304

  • Diameter<120mm/Diameter<200mm, etc

  • as Catalyst Used in Automobile/Motorcycle

  • Round, Square, Racetrack

  • DXY

  • China

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

  • The Brake Noise

Product Description

We are manufacturer of various catalytic converter for exhaust system. Main products: Metal honeycomb substrate catalyst and ceramic honeycomb substrate catalyst for automobile, motorcycle exhaust pipe substrate etc. The material of outside shell is SUS441 and 444. The foil material of inside is OCr21Al6, and the thickness is 0.1 mm. Compared to ceramic substrate, the metallic substrate has good heat conduction advantage. The honeycomb metal substrate for precious metal coating, our technology can make sure the low loss rate. It can be made of concentric round metal substrate, also can be made of duboule s metal substrate.

Euro4 Metal Car Exhaust System Catalyst Substrate
We mainly produce auto catalyst used for motorcycles, universal engine and so on. The catalyst is well known for low light-off temperature with long-term durability performance. It is mainly exported to Germany, Korea, Sweden etc. Our products meet the standards EuroII, EuroIII, EuroIV and EuroV emission standard approved.

Euro4 Metal Car Exhaust System Catalyst Substrate
Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application

High dispersion of noble metals:
*Low light -off temperature
*Excellent oxygen storage ability wide span of λ
*Good performance against high temperature
*Reduces emission of CO. HC NOx by up to 98%
*Can be provided in a standard or custom configuration

Mantle Matrix Brazing
Ferritel (SUS444, SUS441, SUS430) Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767)
Nickel base alloy
or Austenitic heat resistant stainless steel (SUS304)

Thickness(mm) 0.04-0.1
Width(mm) 10-250
Main Chemical composition Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune
Max Service temperature 1250 ° C
Thermal conductivity 63.2
Resistivity at 20 ° C 1.42
Density(g/cm3) 7.16
Coefficient of line expansion 14.7
Melting point(approx.) 1500
Tensile strength 630-780
Elongation at rupture >12
Variation of area 65-75
Repeat bending frequency >5
Hardness 200-260
Thickness(mm) 0.04-0.1
Width(mm) 10-250
Main Chemical composition Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune
Max Service temperature 1250 ° C
Thermal conductivity 63.2
Resistivity at 20 ° C 1.42
Density(g/cm3) 7.16
Coefficient of line expansion 14.7
Melting point(approx.) 1500
Tensile strength 630-780
Elongation at rupture >12
Variation of area 65-75
Repeat bending frequency >5
Hardness 200-260
