Cordierite Honeycomb Ceramic Monolith Substrate for Automobiles
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Cordierite Honeycomb Ceramic Monolith Substrate for Automobiles

Cordierite Honeycomb Ceramic Monolith Substrate for Automobiles

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • CHS

  • as Catalyst Used in Automobile/Motorcycle

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001

  • Catalytic Converter

  • Cordierite

  • 100-600cpsi

Product Description

Ceramic Honeycomb Substrate Introduction:
Ceramic Honeycomb Substrate is made of cordierite enjoys the merits of very low thermal expansion coefficient, high specific surface area, low pressure drop, rapid light-off and unique structures which are perfect for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals. The shape will be round, oval or racetrack with 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi cells that provide high surface for the precious metal catalysts that convert noxious emission into water vapor, carbon dioxide and so on.

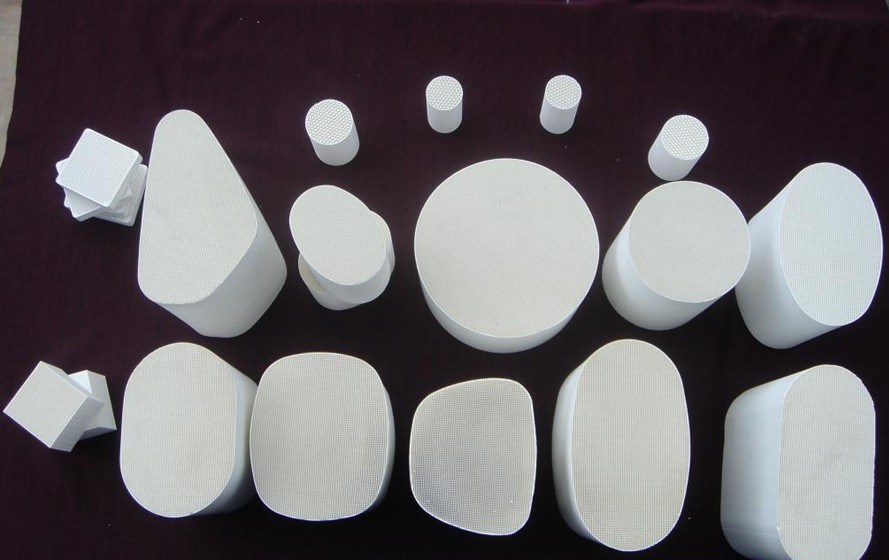

Cordierite Honeycomb Ceramic Monolith Substrate for Automobiles

The gasoline engine tail gas purifier carrier coated with catalyst is suitable for and is currently one of the most important means to control tail gas purification for gasoline engine discharge of tail gas in motorized vehicles. Our honeycomb
Ceramics are characterized by unique honeycomb structure, low expansion coefficient, good thermal stability, large specific area and low pressure loss, and reach domestic advanced level.

The usual CPSI for honeycomb ceramic substrate is 400. The shape of honeycomb ceramic is round, racetrack, ellipse and other special shape according to the customer's requirement in order to meet the different cars models requirements. High specific surface area, low pressure drop, rapid light-off time and reliable & durable performance are achieved through high cell density of 400, 500 and 600 cpsi. All of these make our ceramic honeycomb an ideal catalyst substrate media for oxidation & reduction catalyst. Our typical substrate are available in a variety of sizes with the different shapes, such as: Round, elliptical, race track and so on.

Features:
*Material: Alumina, Steatite, Cordierite, Mullite, etc.
*High Temperature Resistance (1800 celsius degree)
*High mechanical strength
*Good chemical capability and insulation
*Shaped as customer' drawing

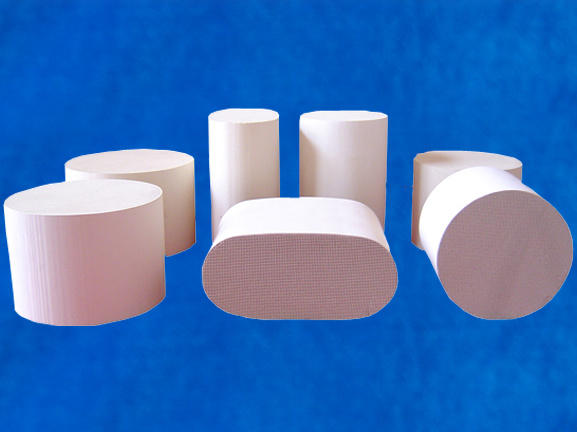

Cordierite Honeycomb Ceramic Monolith Substrate for Automobiles

Advantages:
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small.
*Cold start performance is good, low light-off temperature, high conversion efficiency

Applications:
Iron, garbage incinerator and waste gas treatment thermal equipment, chemical plants, smelters, industrial boilers, gas turbines, power plants, power engineering and heating equipment, ethylene cracking furnace etc.
Num Item Index
CFT-02(260channel) CFT-03(300channel) CFT-04/06(400/600channel)
1 Bulk density Kg/cm3 ≤ 0.70
2 Water adsorption % 20-27
3 Resistance
To normal
Atmospheric
temperature
X(parallel to channels) ≥ 50 ≥ 60 ≥ 65
Y(vertical to channels) ≥ 160 ≥ 180 ≥ 200
4 Coefficient of thermal
expansion -1(20-800)
≤ 1.50*10-6
5 Soften Temperature 1450
6 Thermal stability 800 ≥ 3
7 Specific surface area cm2/cm3 ≥ 20
8 Chemical composition range % Al2O3 SiO2 MgO K.Na2O Fe2O3 Other
31-34 48-51 12-14 <1 <0.5 <1
10 Thermal conductivity 20-100
W/m.k
1.5-2.5 1.4-2.0 1.5-2.5 1.3-1.5 1.5-2.3 1.0-1.2
Shape Shape diameter ( mm )
Channel Density: 100-400 Holes/square inch







Racetrack
Shape
(Ellipse)
169*85.7*127







150*100
148*84*127 150*75
144.8*81*76.2 125*130
144.8*81.3*75 144*152
127*63.5*127 118*152
145*80*80 106*150
93*61*90 106*100
120.6*80*65 103*100
120*80*75 101.6*100
147*96*75 100*100
100*100*75 93*130
50*50*25 93*49.85
83*88
80*100
80*75
100*75
125*100
125*130
Remark: We can customize the product according to the user's requirement if the channel density is within 600 holes/square inch, the shape diameter within 150*150 mm, and the height within 200 mm,.
