Cordierite Honeycomb Ceramic Monolith Catalytic Converter Substrate

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • CHS

  • Catalytic Converter

  • Southeast Asia

  • 120*81*76.2mm,144.8*81.3*70mm,etc

  • 100-400cpsi

  • DXY

  • Wooden Box/Carton Box with Pallet

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

  • The Brake Noise

Product Description

Ceramic Honeycomb Substrate is the core product of our company. Their thermal expansion coefficient can
be controlled within 1.1*10-6, the average diameter of poreis 8-10μm, with the wall thickness of 0.15-0.17mm, achieving leading industrial level in China, and ready to be used in a variety of catalytic
converter applications.
As one of the national standard setters of cellular ceramic, we independently
developed and owned the core technologies on lowering thermal expansion coefficient, improving the cellular structure and wall thickness. We offer more than 40 sizes of ceramic
substrates with various cell designs.This type of products are been exported to Germany, Italy,
France, the United Arab Emirates, etc.


The major technical parameters for cordierite are as below:
*Thermal expansion coefficient: 1.6-2.0×10-6/ºC(20-800ºC)
*Absorption rate: 20-30%
*Inner wall thickness: 0.2±0.02mm
*CPSI (cell pieces per square inch): 200-600
*Bulk density: 0.5±0.05g/cm3
*Crushing strength: ≥14Mpa (on the top)
*≥4Mpa (on the side)
*Soften temperature: ≥1360°C

Specifications of Honeycomb Ceramic Substrate
*Good thermal shock
*Thin Wall Thickness
*Less backpressure

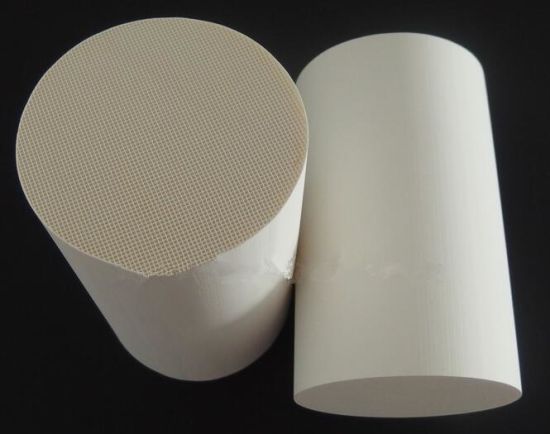

Cordierite Honeycomb Ceramic Monolith Catalytic Converter Substrate

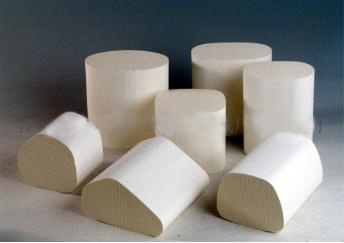

Cordierite Honeycomb Ceramic Monolith Catalytic Converter Substrate

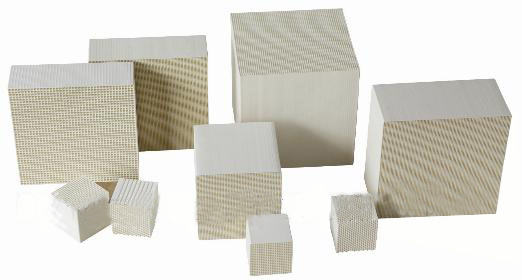

Cordierite Honeycomb Ceramic Monolith Catalytic Converter Substrate

Num Specification Holes shape Type
1 83×85 Square 400Cell/In2(CPSI)
2 100×100 Square 400Cell/In2(CPSI)
3 130×130 Square 400Cell/In2(CPSI)
4 118×150 Square 400Cell/In2(CPSI)
5 107×100 Square 400Cell/In2(CPSI)
6 150×75 Square 400Cell/In2(CPSI)
7 83×125 Square 400Cell/In2(CPSI)
8 150×150 Square 300Cell/In2(CPSI)
9 120×100 Square 300Cell/In2(CPSI)
10 101.6×100 Square 300Cell/In2(CPSI)
11 94×100 Square 300Cell/In2(CPSI)
12 85×70 Square 300Cell/In2(CPSI)
