Shanghai, China
Wooden Box and Pallet/Packed as Customers′ Need
L/C, T/T, Western Union
CHC
Catalytic Converter
South America
Cordierite
Diameter<120mm/Diameter<200mm, etc
100-600cpsi
as Catalyst Used in Automobile/Motorcycle
Round, Square, Oval, Racetrack
DXY
China
Ceramic
Euroii-Eurov
ISO9001, TS16949
Mechanical Noise and Combustion
Mechanical Noise
The Brake Noise

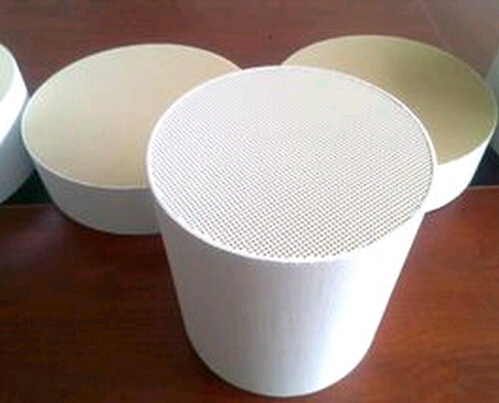

Product Description
Parameters | Unit | standard | typical data | |
Cordierite crystal phase | wt% | ≥ 90 | 94 | |
Coefficient of Thermal Expansion20-800 ° C | cm/cm/ ° C | ≤ 1.2 | ≤ 1.5 × 10-6 | |
Thermal Stability20-650 ° C | times | ≥ 1 | 3 | |
Soften Temperature | ° C | ≥ 1420 | 1440 | |
Compression Strength | Lengthways | MPa | ≥ 15 | 16.9 |
Horizontal | MPa | ≥ 2 | 6.2 | |
Specific Weight | Kg/L | ≥ 0.15 | 0.45-0.5 | |
Porosity | % | 40-45 | 41 | |
Water-absorbing rate | % | 23-27 | 23.8 |
Rotundity shape | Ellipse shape | ||
Specificationmm | Number of channels (holes /square inch) | Specification (mm) | Number of channels (holes /square inch) |
Φ 83 × 85 | 400 | T146.8 × 77 × 86.4 | 400 |
Φ 144 × 152.4 | 400 | T120.6 × 80 × 152.4 | 400 |
Φ 100 × 100 | 400 | T169.7 × 80.7 × 76.2 | 400 |
Φ 130 × 130 | 400 | T144.8 × 81.3 × 152.4 | 400 |
Φ 118 × 150 | 400 | T144.8 × 81 × 76.2 | 400 |
Φ 103 × 100 | 400 | T169.7 × 80.7 × 101.6 | 400 |
Φ 150 × 75 | 400 | T144.8 × 81.3 × 100 | 300 |
Φ 83 × 125 | 400 | T127 × 63.5 × 107 | 300 |
Φ 150 × 150 | 300 | T144.8 × 81.3 × 70 | 300 |
Φ 120 × 100 | 300 | T144.8 × 81.3 × 150 | 300 |
Φ 101.6 × 100 | 300 | Race track shape | |
Φ 94 × 100 | 300 | P120.65 × 80.01 × 76.2 | 400 |
Φ 85 × 70 | 300 | P120.65 × 80.01 × 76.2 | 200 |
Φ 93 × 76 | 200 | P144 × 68 × 150 | 400 |
Φ 118 × 76 | 200 | P125 × 80 × 100 | 400 |
