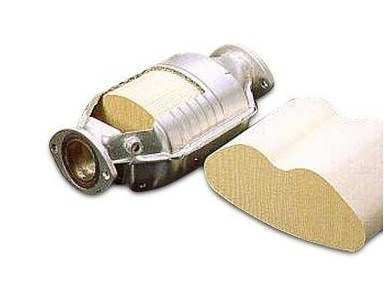

Ceramic Honeycomb Catalyst Substrate for Car/Motorcycle

Ceramic Honeycomb Catalyst Substrate for Car/Motorcycle

Quantity:




Inquire Add to Basket

Production Capacity:
100, 000pieces/Month
Transport Package:
Wooden Box/Carton Box with Pallet
Payment Terms:
L/C, T/T, Western Union

Model NO.:
HCS
Trademark:
DXY
Origin:
China
Body Material::
Ceramic
Discharge Standard::
Euro IV
Certification::
ISO9001, TS16949
Component::
Catalytic Converter
Size::
120*81*76.2mm,144.8*81.3*70mm,etc
Cell::
100-400cpsi

Product Description

Product Description

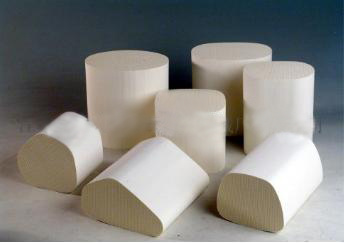

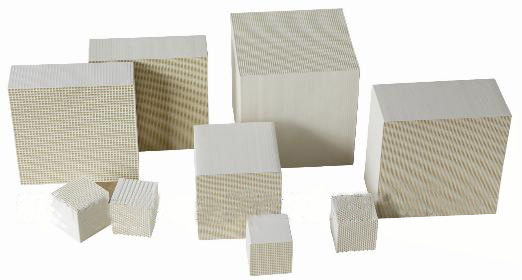

Ceramic Honeycomb Substrate is the core product of our company. Their thermal expansion coefficient can
be controlled within 1.1*10-6, the average diameter of poreis 8-10μm, with the wall thickness of 0.15-0.17mm, achieving leading industrial level in China, and ready to be used in a variety of catalytic
converter applications. As one of the national standard setters of cellular ceramic, we independently
developed and owned the core technologies on lowering thermal expansion coefficient, improving the cellular structure and wall thickness. We offer more than 40 sizes of ceramic
substrates with various cell designs.This type of products are been exported to Germany, Italy,
France, the United Arab Emirates, etc.

The major technical parameters for cordierite are as below:
*Thermal expansion coefficient: 1.6-2.0×10-6/ºC(20-800ºC)
*Absorption rate: 20-30%
*Inner wall thickness: 0.2±0.02mm
*CPSI (cell pieces per square inch): 200-600
*Bulk density: 0.5±0.05g/cm3
*Crushing strength: ≥14Mpa (on the top)
*≥4Mpa (on the side)
*Soften temperature: ≥1360°C

Specifications of Honeycomb Ceramic Substrate
*Good thermal shock
*Thin Wall Thickness
*Less backpressure
Ceramic Honeycomb Catalyst Substrate for Car/Motorcycle
