Catalytic Converter with Precious Metal/Ceramic Honeycomb Substrate

Catalytic Converter with Precious Metal/Ceramic Honeycomb Substrate

Quantity:




Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
100, 000pieces/Month
Payment Terms:
L/C, T/T, Western Union

Model NO.:
MHS
Automobile Chassis Noise:
The Brake Noise
Component:
Catalytic Converter
Main Market:
North America
Material:
SS304, SS316
Application:
as Catalyst Used in Automobile/Motorcycle
Cell:
100-600cpsi
Thickness(mm):
0.04-0.1
Width(mm):
10-250
Max Working Temperature:
1100°c
Max Service Temperature:
1250°c
Trademark:
DXY
Transport Package:
Wooden Box and Pallet/Packed as Customers′ Need
Specification:
all size
Origin:
China
HS Code:
84213990
Type::
Catalytic Converter
Body Material::
Steel
Discharge Standard::
Euro V
Certification::
ISO9001, TS16949
Noise Source::
The Noise of Engine
The Noise of Engine::
Mechanical Noise

Product Description

Product Description

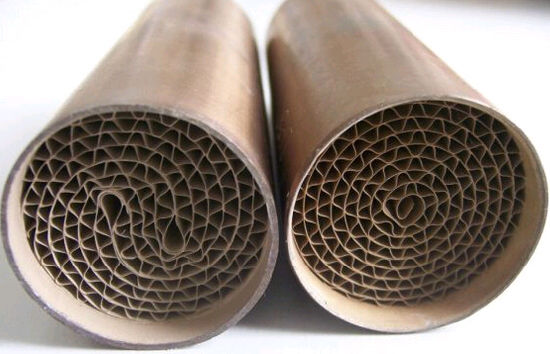

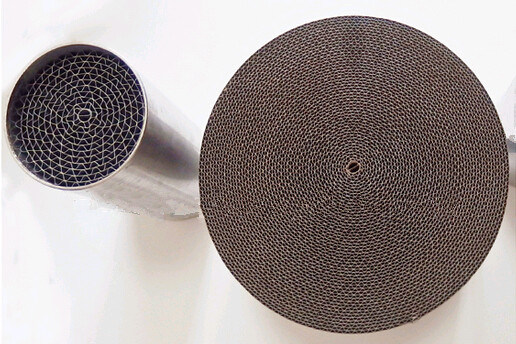

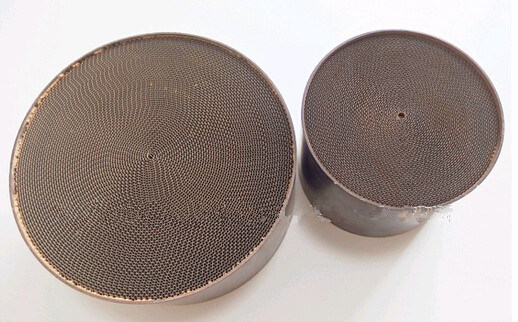

Metal Honeycomb Substrate Introduction:
Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

Catalyst Type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst

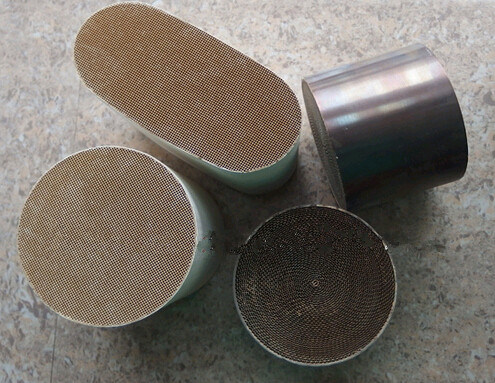

Catalytic Substrate: Metal substrate and honeycomb ceramic substrate
Fantastic coating fastness and stably and long-term catalyst ability
Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment
Various kinds of specifications and types, customized products as per clients specific requirement and technology data

Major technical parameters:
Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate: ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%

Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application

Features:
*High quality of 409 stainless steel shell(ss304 is also avaialbe)
*400cell/sqt(300cells, 600cells, 800 cells are also available)
*Inside catalyst (Pt, Pd, Rh+rare earth) coating on honey combed metal substrate
*Reduce hamful emmision( CO, CH, NOx) from motor vehcle more than 97%
*Meet Euro3 emmision standard, and warranty life is 3year/80000 kms

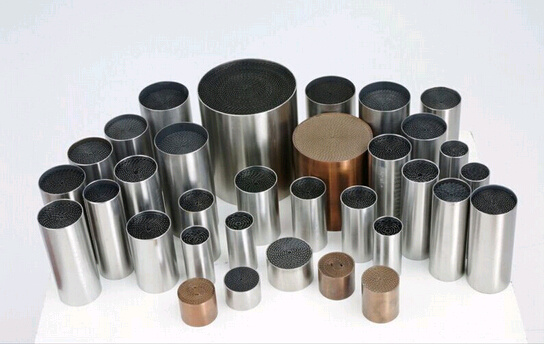

Catalytic Converter with Precious Metal/Ceramic Honeycomb Substrate

Parameters		Unit	standard	typical data
Cordierite crystal phase		wt%	≥ 90	94
Coefficient of Thermal Expansion20-800 ° C		cm/cm/ ° C	≤ 1.8 × 10 -6	≤ 1.5 × 10 -6
Thermal Stability20-650 ° C		times	≥ 1	3
Soften Temperature		° C	≥ 1420	1440
Compression Strength	Lengthways	MPa	16	16.9
Compression Strength	Horizontal	MPa	5	6.2
Specific Weight		Kg/L	0.45-0.55	0.45-0.5
Porosity		%	40-45	41
Water-absorbing rate		%	23-25	23.8

Shape	Hole density (hole/in 2 )	Size (mm)	Size (inch)
Round	300 CPSI	Φ 101.6 x152.4	4 × 6
Round	300 CPSI	Φ 118.4 x100	4.66 × 3.94
Round	300 CPSI	Φ 118.4 x152.4	4.66 × 6
Round	300 CPSI	Φ 150 x100	5.9 × 3.94
Round	300 CPSI	Φ 170 x100	6.69 × 3.94
Round	300 CPSI	Φ 190 x100	7.48 × 3.94
Round	300 CPSI	Φ 210 x130	8.26 × 5.12
Round	300 CPSI	Φ 240 x76.2	9.45 × 3
Round	300 CPSI	Φ 240 x100	9.45 × 3.94
Oval	300 CPSI	Φ 120.6 x 80 x 152.4	4.75 × 3.15 × 6
Oval	300 CPSI	Φ 144.8 x 81.3 x 152.4	5.7 × 3.2 × 6
Oval	300 CPSI	Φ 169.7 x 80.8 x 115	6.68 × 3.18 × 4.52
Round	400 CPSI	Φ 150 x100	5.9 × 3.94
Round	400 CPSI	Φ 144 x 152.4	5.66 × 6
Round	400 CPSI	Φ 118.4 x 152.4	4.66 × 6
Round	400 CPSI	Φ 115.4 x 152.4	4.54 × 6
Round	400 CPSI	Φ 106 x 100	4.17 × 3.94
Round	400 CPSI	Φ 103 x 100	4.05 × 3.94
Round	400 CPSI	Φ 101.6 x 152.4	4 × 6
Round	400 CPSI	Φ 100 x 100	3.94 × 3.94
Round	400 CPSI	Φ 93 x 152.4	3.66 × 6
Round	400 CPSI	Φ 83 x 152.4	3.26 × 6
Round	400 CPSI	Φ 80 x 100	3.15 × 3.94
Round	400 CPSI	Φ 76.2 × 50	3 × 1.97
Round	400 CPSI	Φ 60 × 85	2.36 × 3.34
Oval	400 CPSI	Φ 169 x 85.7 x 115	6.65 x 3.37 x 4.52
Oval	400 CPSI	Φ 169 x 80.8 x 115	6.65 x 3.18 x 4.52
Oval	400 CPSI	Φ 148 x 84 x 152.4	5.82 x 3.3 x 6
Oval	400 CPSI	Φ 144.8 x 81.3 x 152.4	5.7 x 3.2 x 6
Oval	400 CPSI	Φ 127 x 63.5 x 152.4	5 x 2.5 x 6
Oval	400 CPSI	Φ 93 x 61 x 90	3.66 x2.4 x 3.54
Oval	400 CPSI	Φ 120.6 x 80 x 152.4	4.75 x 3.15 x6
Oval	400 CPSI	Φ 143 x 98 x 152.4	5.63 x 3.86 x 6
Oval	400 CPSI	Φ 147 x 95 x 152.4	5.78 x 3.74 x 6
Oval	400 CPSI	Φ 177.8 x 114.3 x 170	7 x 4.5 x 6.7
