Catalytic Converter Ceramic Honeycomb Catalyst Substrate
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Catalytic Converter Ceramic Honeycomb Catalyst Substrate

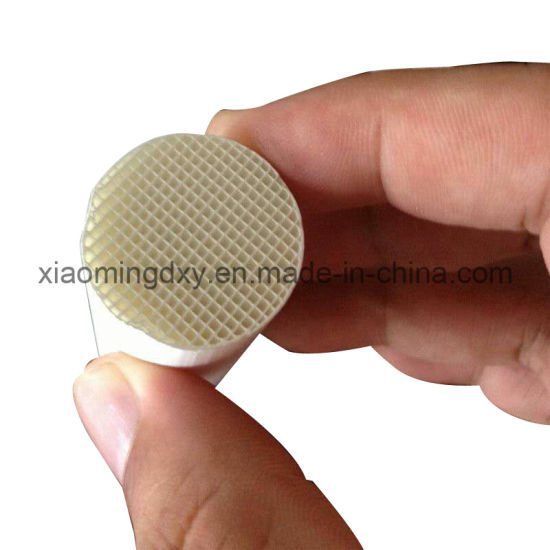

Catalytic Converter Ceramic Honeycomb Catalyst Substrate

  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • CHS

  • DXY

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001

  • Catalytic Converter

  • Cordierite

  • Wooden Box and Pallet/Packed as Customers′ Need

Product Description

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. Used as catalytic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

Catalytic Converter Ceramic Honeycomb Catalyst Substrate

*High specific surface area: Ensure exhaust gas could contact weigh catalyst enough
*Stable water absorption: Guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste for too thick coating
*Warm-up characters: After starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time
*Low exhaust resistance: Ask exhaust resistance of substrate to engine low, so that it won't affect the performance of engine
*High intensity: Substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed
*Perfect assembly: Substrates are parts of exhaust; Perfect appearance and exact dimension could ensure assembly perfect
Item Index

Heat Property
Coefficient of heat expansion (40-800celsius degree) (x10-6/celsius degree) <1.0
Heat Property Specific heat [J/(g.k)] 0.84
Heat Property Softening temperature (celsius degree) 1400
Heat Property Melting point (celsius degree) 1455
Heat Property The highest working temperature (celsius degree) 1350
Physical Property Fine mesh bulk (cm3/g) 0.2
Physical Property Apparent porosity (%) 36
Physical Property Average fine aperture (um) 4
Mechanical Property Compress breaking strength (Mpa) Aaxes>8.3 Baxes>1.1 Caxes>0.1
Thermal Shock Resistance Aire cooled temperature difference (celsius degree) >650
